Processors
Compare E4’s E4 Silver E4 Black E4 White
E4 Silver
The best solution for cruisers and racers
Our high-performance Model E4 Silver sailing processor delivers fast, accurate and reliable data. The E4 Silver uses algorithms designed and used by pro sailors, combining sailing data with advanced racing technology, allowing you to configure, calibrate and view your boat data everywhere.
Processors
Compare E4’s E4 Silver E4 Black E4 White
E4 Silver
The best solution for cruisers and racers
Our high-performance Model E4 Silver sailing processor delivers fast, accurate and reliable data. The E4 Silver uses algorithms designed and used by pro sailors, combining sailing data with advanced racing technology, allowing you to configure, calibrate and view your boat data everywhere.
Everyone
The E4 silver is designed to enable all sailors to have access to high tech sailing technology. The intuitive Navdesk app allows for easy calibration and set up of your system. It’s getting the most accurate data possible with the least effort. And with our ScreenView App you can access the data you want whether you are on deck, in your bunk or a thousand miles away.
► WATCH VIDEO: click on Ipad to see how easy it is to calibrate, view and configure your data
INTRODUCTION TO NAVDESK
INTRODUCTION TO NAVDESK
EVERYWHERE
The Model E4 is the first processor of its kind, enabling online connectivity for over-the-air system updates, remote diagnostics, and system calibration.
All your data will be automatically logged in the Sailmon App, allowing you to download, analyze, and share your water adventures in real-time or later. You even have the option to synchronize your data with imported photos and videos, including drone footage, to get a complete picture of what happened.
Everywhere
The Model E4 is the first processor of its kind, enabling online connectivity for over-the-air system updates, remote diagnostics, and system calibration.
All your data will be automatically logged in the Sailmon App, allowing you to download, analyze, and share your water adventures in real-time or later. You even have the option to synchronize your data with imported photos and videos, including drone footage, to get a complete picture of what happened.
Everywhere
The Model E4 is the first processor of its kind, enabling online connectivity for over-the-air system updates, remote diagnostics, and system calibration.
All your data will be automatically logged in the Sailmon App, allowing you to download, analyze, and share your water adventures in real-time or later. You even have the option to synchronize your data with imported photos and videos, including drone footage, to get a complete picture of what happened.
Every device

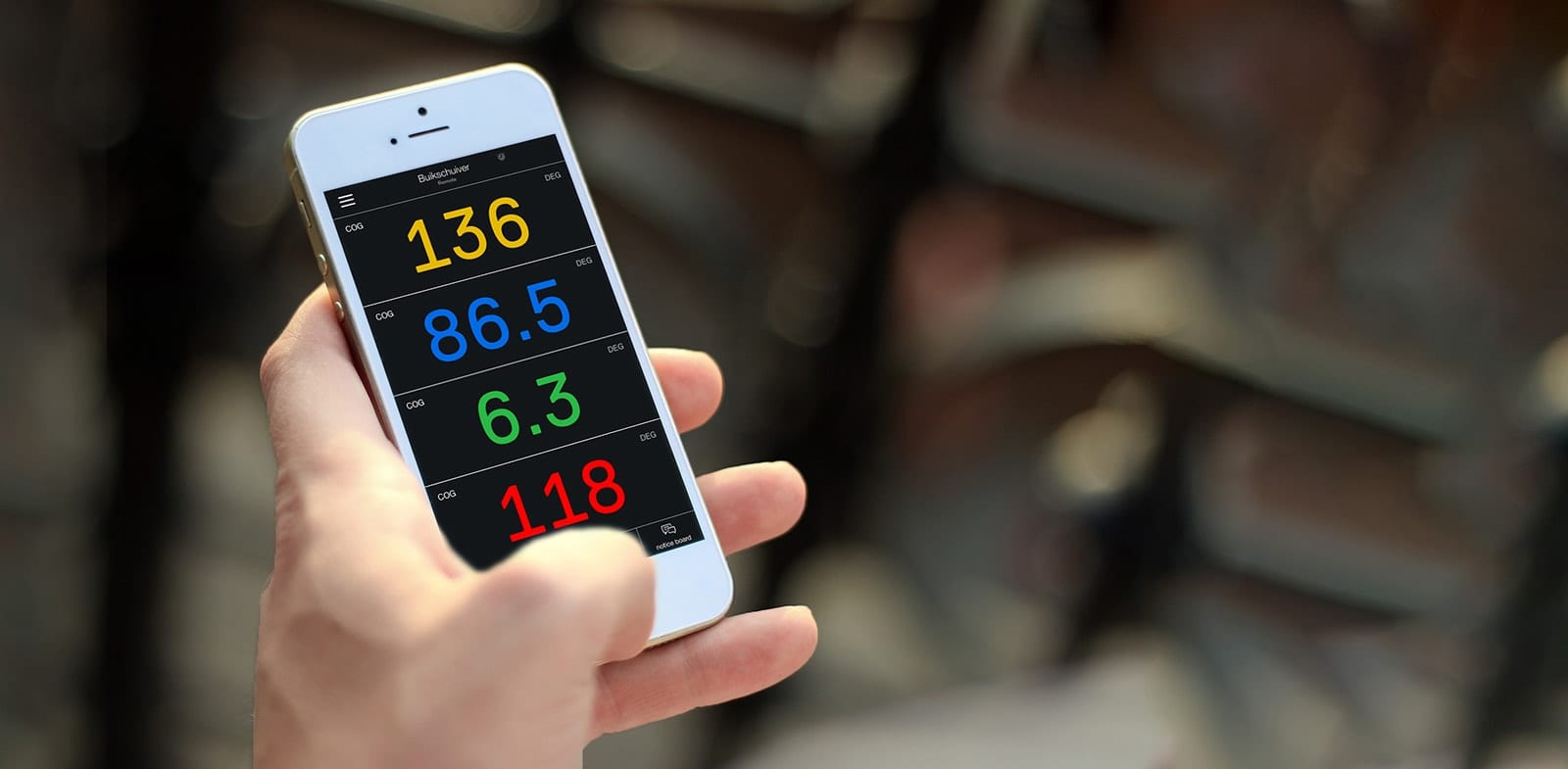

Turn any smart device or NMEA 2000 display into a Sailmon readout. Just connect your E4 to the ships network and all the data can then be reached through the ships Wi-Fi network.
Connect it to your Fastnet network to reuse your fastnet displays. Or connect it to existing NMEA 2000 displays as a Sailmon readout.
Every device
Turn any smart device or NMEA 2000 display into a Sailmon readout. Just connect your E4 to the ships network and all the data can then be reached through the ships Wi-Fi network.
Connect it to your Fastnet network to reuse your fastnet displays. Or connect it to existing NMEA 2000 displays as a Sailmon readout.
Every device
Turn any smart device or NMEA 2000 display into a Sailmon readout. Just connect your E4 to the ships network and all the data can then be reached through the ships Wi-Fi network.
Connect it to your Fastnet network to reuse your fastnet displays. Or connect it to existing NMEA 2000 displays as a Sailmon readout.
Every sensor
The E4 is compatible with all sensors such as wind, boat speed, compass and mast rotation, simply replace your existing processor with the Model E4. Best in class for Instrument Integration. The E4 system can use a wide range of sensors based on NMEA, B&G, Nexus or Raymarine protocols:
● It supports various interfaces for existing hardware on board such as B&G, Raymarine and other sensors or hardware
● It can support and bridge different legacy networks simultaneously and upgrade their capabilities.
● It allows for the reuse of old system displays from many manufactures. For example, Garmin GNX, B&G Fastnet or Sailmon Element X and VII can be connected to the system.
We replaced our B&G H3000 Processor for a SAILMON Model E4. It is really, really easy to setup and it seamlessly integrated in the B&G instruments on our KER 46.
Gerd-jan Poortman, 3x Volvo Campaigner
When we replaced our B&G H3000 Processor by the SAILMON Model E4 Processor, this solved all of our sailing instruments problems.
Fabien Roché, S/Y Anatta
Sailmon’s screens and processor haven’t failed us once up in the Arctic despite some chilly conditions. Great piece of kit
S/Y Firebird, Captain
Sailmon Model E4 offers extensive functionalities – still it is really intuitive, and easy to use.
Dennis Hennevanger, Founder and owner of Saffier
Technical specifications
Power:
– Voltage: 10-30V
– Consumption: 3w
Processor:
– A9 dual-core
Operating system:
– SailOS & NavDesk
Other Apps:
– CrewView
– ScreenView
Interfaces:
– USB
– Ethernet
– NMEA2000
– NMEA0183
– Fastnet
– NEXUS FDX
Model E4 features include:
– 10 pre-defined presets
– Advanced calibration possibilities
– Up to 32 displays per system
– Video playback
– 2D plots
– High-performance graphical sailing instrument
– Diagnosis for your sensor data
– All data tags can be customized
– Manual backlight override
– Polar performance data
– Data logging
– Configuration tool for displays
Environmental requirements:
– Operating ambient temperature: -10 to 50 °C
– IP54 Sealed
Hardware
– Weight: 1.4kg
– Case: Aluminium
– Processor: A9 Dual Core
– NMEA 2000: yes
– Ethernet: yes
– USB: yes
– I/O: yes
– II/O: yes
Software:
– Automatic calibration: yes
– 3D visualization, calibration: yes
– Parallel Universe: no
– WTP3 Fastout: yes
– External channels: yes
– Screenview: 5
– Expedition output: yes
– Fastnet output: yes
– NMEA 0183 UDP: in/out
– NMEA 0183 port I: in/out at 4800/38400 bps
– NMEA 2000 output: yes
– Garmin custom channels: yes
– H5000 custom channels:
– Sailmon Logs: yes
– Start software: yes
– Polars: yes
System requirements:
– Internet access* (required for some features)
– Controlling your instrument with NavDesk
– MAC: OSX 10.10 or later
– PC: Windows 7 or later
– iOS (Beta) iOS 10 or later
– Android 5.0 or later
CUSTOMIZE YOUR PROCESSOR
Just when you thought our instruments had reached the limits of customizability, we introduce even more possibilities for your tailor-made Sailmon system. Whether you want to win an important upcoming regatta or you want to maximize your sailing experience and customize your display layouts, with the new paid features, you can upgrade your electronics to meet your personal needs.
GET A FREE AND PERSONAL QUOTE
Fill in the form and SAIL WITH US. We’re happy to inform you how our processors, displays and apps maximize your sailing experience. Refit, replace or reuse your current instruments.
E4 Silver
The best solution for cruisers and racers
Our high performance Model E4 Silver sailing processor delivers fast, accurate and reliable data. The E4 Silver uses algorithms designed and used by pro sailors, combining sailing data with advanced racing technology, allowing you to configure, calibrate and view your boat data everywhere.
► WATCH VIDEO: click on Ipad to see how easy it is to calibrate, view and configure your data
Everyone
The E4 silver is designed to enable all sailors to have access to high tech sailing technology. The intuitive Navdesk app allows for easy calibration and set up of your system. It’s getting the most accurate data possible with the least effort. And with our ScreenView App you can access the data you want whether you are on deck, in your bunk or a thousand miles away.
Everywhere
The Model E4 is the first processor of its kind, enabling online connectivity for over-the-air system updates, remote diagnostics, and system calibration.
All your data will be automatically logged in the Sailmon App, allowing you to download, analyze, and share your water adventures in real-time or later. You even have the option to synchronize your data with imported photos and videos, including drone footage, to get a complete picture of what happened.
Every device
Turn any smart device or NMEA 2000 display into a Sailmon readout. Just connect your E4 to the ships network and all the data can then be reached through the ships Wi-Fi network.
Connect it to your Fastnet network to reuse your fastnet displays. Or connect it to existing NMEA 2000 displays as a Sailmon readout.
Every sensor
The E4 is compatible with all sensors such as wind, boat speed, compass and mast rotation, simply replace your existing processor with the Model E4. Best in class for Instrument Integration. The E4 system can use a wide range of sensors based on NMEA, B&G, Nexus or Raymarine protocols:
● It supports various interfaces for existing hardware on board such as B&G, Raymarine and other sensors or hardware
● It can support and bridge different legacy networks simultaneously and upgrade their capabilities.
● It allows for the reuse of old system displays from many manufactures. For example, Garmin GNX, B&G Fastnet or Sailmon Element X and VII can be connected to the system.
We replaced our B&G H3000 Processor for a SAILMON Model E4. It is really, really easy to setup and it seamlessly integrated in the B&G instruments on our KER 46.
Gerd-jan Poortman, 3x Volvo Campaigner
When we replaced our B&G H3000 Processor by the SAILMON Model E4 Processor, this solved all of our sailing instruments problems.
Fabien Roché, S/Y Anatta
Sailmon’s screens and processor haven’t failed us once up in the Arctic despite some chilly conditions. Great piece of kit
S/Y Firebird, Captain
Sailmon Model E4 offers extensive functionalities – still it is really intuitive, and easy to use.
Dennis Hennevanger, Founder and owner of Saffier
Technical specifications
Power:
– Voltage: 10-30V
– Consumption: 3w
Processor:
– A9 dual-core
Operating system:
– SailOS & NavDesk
Other Apps:
– CrewView
– ScreenView
Interfaces:
– USB
– Ethernet
– NMEA2000
– NMEA0183
– Fastnet
– NEXUS FDX
Model E4 features include:
– 10 pre-defined presets
– Advanced calibration possibilities
– Up to 32 displays per system
– Video playback
– 2D plots
– High-performance graphical sailing instrument
– Diagnosis for your sensor data
– All data tags can be customized
– Manual backlight override
– Polar performance data
– Data logging
– Configuration tool for displays
Environmental requirements:
– Operating ambient temperature: -10 to 50 °C
– IP54 Sealed
Hardware
– Weight: 1.4kg
– Case: Aluminium
– Processor: A9 Dual Core
– NMEA 2000: yes
– Ethernet: yes
– USB: yes
– I/O: yes
– II/O: yes
Software:
– Automatic calibration: yes
– 3D visualization, calibration: yes
– Parallel Universe: no
– WTP3 Fastout: yes
– External channels: yes
– Screenview: 5
– Expedition output: yes
– Fastnet output: yes
– NMEA 0183 UDP: in/out
– NMEA 0183 port I: in/out at 4800/38400 bps
– NMEA 2000 output: yes
– Garmin custom channels: yes
– H5000 custom channels:
– Sailmon Logs: yes
– Start software: yes
– Polars: yes
System requirements:
– Internet access* (required for some features)
– Controlling your instrument with NavDesk
– MAC: OSX 10.10 or later
– PC: Windows 7 or later
– iOS (Beta) iOS 10 or later
– Android 5.0 or later
CUSTOMIZE YOUR SYSTEM
Just when you thought our instruments had reached the limits of customizability, we introduce even more possibilities for your tailor-made Sailmon system. Whether you want to win an important upcoming regatta or you want to maximize your sailing experience and customize your display layouts, with the new paid features, you can upgrade your electronics to meet your personal needs.
GET A FREE AND PERSONAL QUOTE
Fill in the form and SAIL WITH US. We’re happy to inform you how our processors, displays and apps maximize your sailing experience. Refit, replace or reuse your current instruments.
