MAX
WINNERS SAIL WITH US
IMPROVE FROM PRE-START TO DEBRIEF
Start Better
There is no excuse ever to be early or late again. The advanced start functionality – based on a stunning 30 cm accuracy – will help you hit the line at the right time.
Sail Faster
Speed is key. Keep an eye on your MAX and understand what makes you go faster or slower. Adjust your performance with the best GPS data in the market available.
Sail Higher
Making the right decision on the water has never been that easy. Our header lift indicator will ensure you sail on lifts and tack on headers.
ANALYSE
It doesn’t stop onshore. Connect your MAX to the Sailmon App and make your debrief more fun and challenging. Log your trips to analyse, improve, rank and much more!

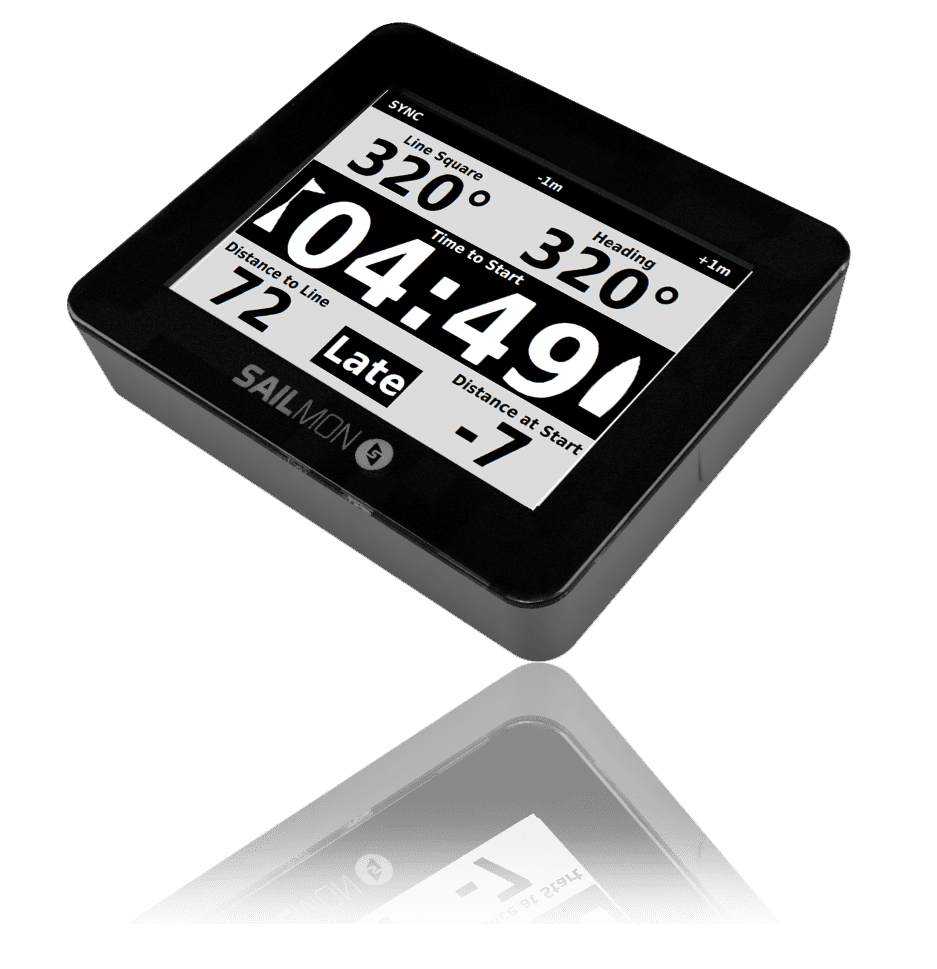

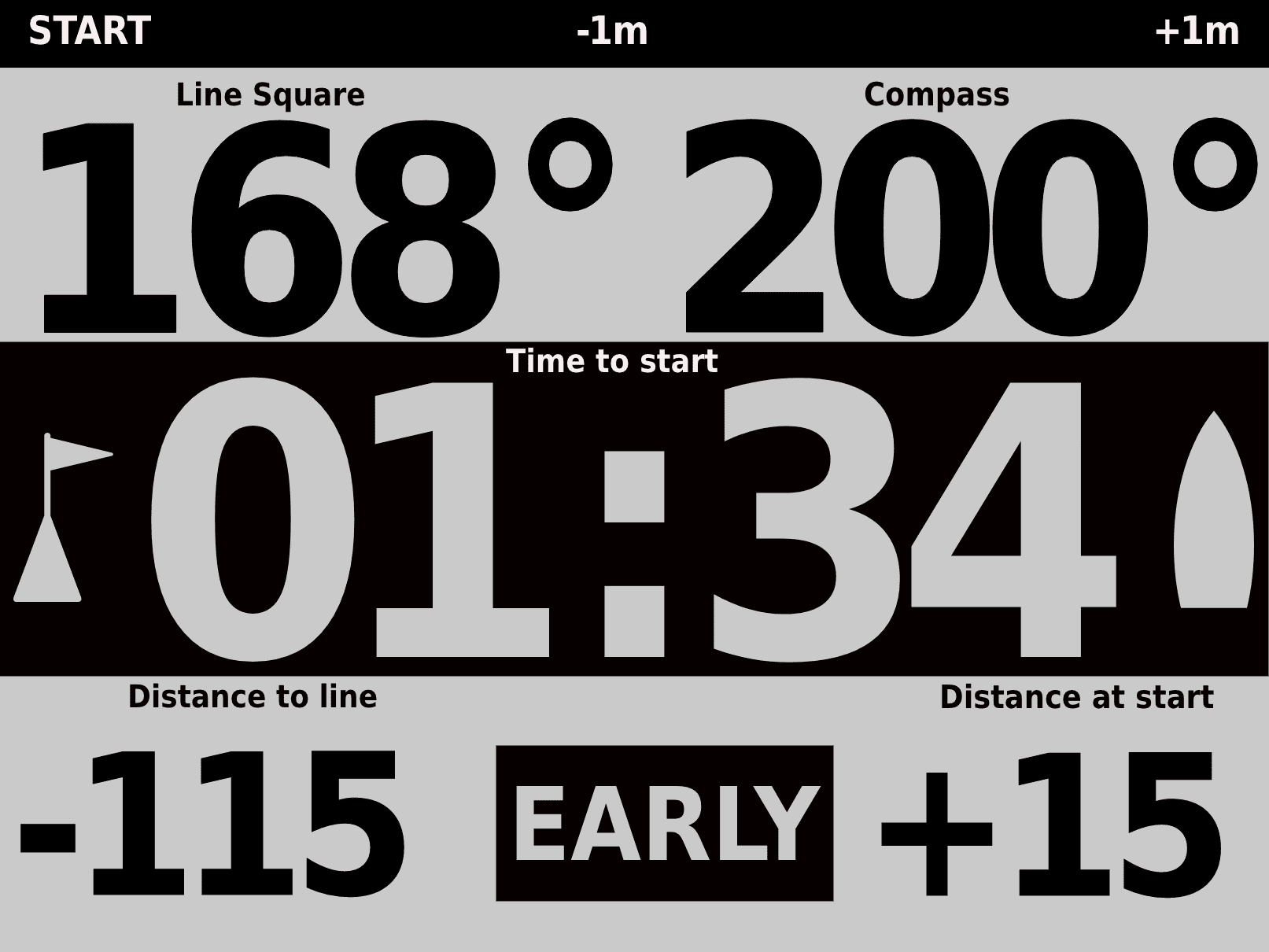

START BETTER
ARE YOU TOO EARLY OR TOO LATE?
Consistently trying to achieve the perfect start? MAX is your best coach. Improve during training and impress your competitors during racing.
1. Ping the boat and ping the pin
2. Synchronise the time
3. Adjust your sailing to the data
4. Are you late or early? Check the indicator!
ENRICH YOURSELF WITH DATA
AND KNOW MORE THAN YOUR COMPETITORS
SAIL FASTER
SHORTEST WAY AT THE HIGHEST SPEED
Speed is key! Keep an eye on the data – based on the best GPS data in the market available – and understand what makes you go faster or slower. Let VMG lead you the shortest way at the highest speed:
1. Determine your best VMG (before the race)
2. Set the course axis in MAX
3. Not in line with your best VMG? Adjust your sailing
USED BY WORLD’S BEST SAILORS
USED BY WORLD’S BEST SAILORS
ADD ONS FOR MORE DATA
EASY SETUP VIA BLUETOOTH OR WIFI
WIND
Connect the Calypso Wind Sensor to receive True Wind Angle (TWA), True Wind Direction (TWD), and True Wind Speed (TWS) data.
LOADCELL
Determine and repeat your fastest setting and preserve the integrity of the rigging. Available for all types of boats.
NMEA 0183 or 2000
Add speed, depth and wind to MAX using an NMEA 0183 or 2000 sensor.
SAIL HIGHER
TACK ON HEADERS AND STAY ON LIFTS
Stay ahead of your competitors from start to finish with the self-learning header/lift indicator showing how many degrees you are headed or lifted from the startline wind direction.
1. Set up your up-and downwind target angles
2. Watch the header/lift indicator during racing
3. Is MAX showing a negative number? You’re lifted.
4. Is MAX showing a positive number? You’re headed.

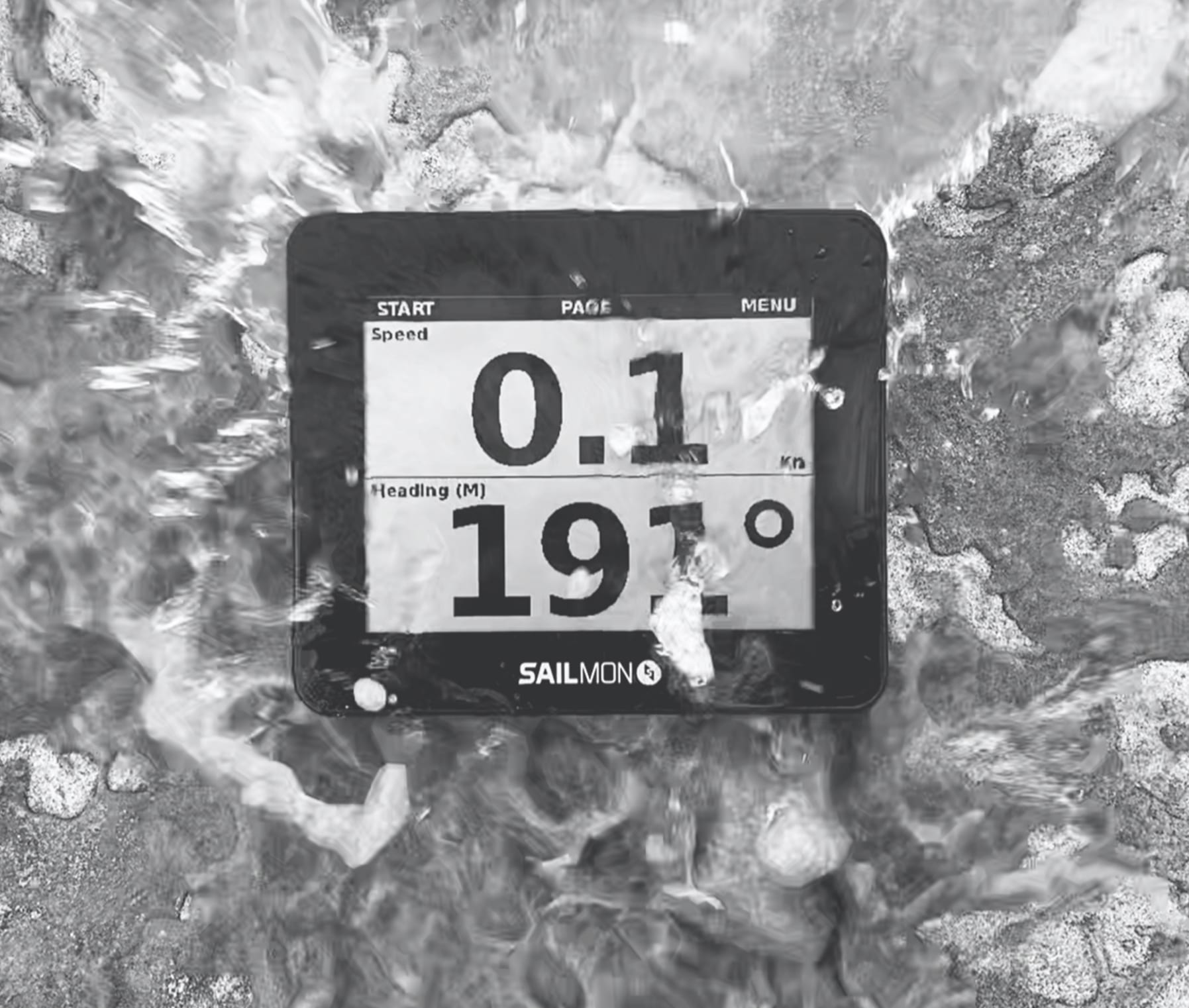

COMPLETELY WIRELESS
IT’S ALL ABOUT CONNECTIVITY
No batteries, charging ports, cables and wires. MAX is completely wireless. Set up a connection with the Sailmon App or sensors via Bluetooth or WiFi and power up your unit via inductive charging.
YOUR GATEWAY TO THE
BEST SAILING APP
JOIN THE #SAILMONSTER COMMUNITY
WHICH MOUNT SUITS YOU?
TECH SPECS
Are you ready to improve your sailing? Check the tec specs and order MAX today!
GENERAL
| Dimension | 22mm x 118,5mm x 93mm |
| Display type | 4,4′ transflective LCD |
| Display resolution | 320 x 240 pixels |
| Weight | 275g |
| Water rating | IP67 |
| Battery type | 3600mAh lithium-polymer |
| Battery life | 16 hours (all-day) |
| Charging | Wireless via inductive |
| Buttons | Soft keys |
SENSORS
| GPS | ✔ |
| GLONASS | ✔ |
| Galileo | ✔ |
| BeiDou | ✔ |
| Multi-band GNSS | ✔ |
| 9 DOF IMU (heel & pitch) | ✔ |
CONNECTIVITY
| Bluetooth | ✔ |
| WiFi (2.4GHz) | ✔ |
| Sailmon App | ✔ |
| Windsensor | ✔ |
| Loadcell | ✔ |
| NMEA 0183 | ✔ |
| NMEA 2000 | ✔ |
| Airmar DST810 | ✔ |
| E4 processors | ✔ |
START FUNCTIONALITY
| Time to Start | ✔ |
| (Estimated) Distance to Line | ✔ |
| Distance to Start | ✔ |
| Line Bearing | ✔ |
| Distance to line | ✔ |
| Simple Start Page | ✔ |
| Race Timer | ✔ |
LIVE DATA
| Page Builder | ✔ |
| Boat Speed Water | ✔ |
| Compass | ✔ |
| Course Angle | ✔ |
| Course over Ground | ✔ |
| Depth | Add-on required |
| Header/Lift | ✔ |
| Heel | ✔ |
| Loadcells | Add-on required |
| Pitch | ✔ |
| Speed over Ground | ✔ |
| Time | ✔ |
| True Wind Angle | Add-on required |
| True Wind Direction | Add-on required |
| True Wind Speed | Add-on required |
| Velocity Made Good | ✔ |
| Velocity at Start | ✔ |
DATA AFTER
| MAX speed | ✔ |
| Ten Second Average | ✔ |
| Top 10 Second Average | ✔ |
APP FEATURES
| Automatically logging trips | ✔ |
| Timeline | ✔ |
| Share, like and comment | ✔ |
| Session reports | ✔ |
| Session higlights | ✔ |
| Session statistics | ✔ |
| View by leg | ✔ |
| Leaderboards (filter by class/period) | ✔ |
| Daily results ranking | ✔ |
| Add photo/video with data stamp | ✔ |
| Download trip (GPX, CSV or Events) | GOLD subscription |
| Notice board | ✔ |
| Compare (live) with others | GOLD subscription |
| Up- and downwind performance | GOLD subscription |
| Personal inferred wind directions | GOLD subscription |
| Shift tracking | GOLD subscription |
| Automatic comparison to best polars in class | GOLD subscription |
YOUR TRACK TO VICTORY
HOW TO BECOME A WINNER?
MAX
Sailmon MAX is the number one training and racing instrument for sailors, riders and foilers. Improve your performance on the water with live data and make your debrief more fun and challenging with the Sailmon App.
WINNERS SAIL WITH US
IMPROVE FROM PRE-START TO DEBRIEF
Start better
There is no excuse ever to be early or late again. The advanced start functionality – based on a stunning 30 cm accuracy – will help you hit the line at the right time.
Sail Faster
Speed is key. Keep an eye on your MAX and understand what makes you go faster or slower. Adjust your performance with the best GPS data in the market available.
Sail Higher
Making the right decision on the water has never been that easy. Our header lift indicator will ensure you sail on lifts and tack on headers.
ANALYSE
It doesn’t stop onshore. Connect your MAX to the Sailmon App and make your debrief more fun and challenging. Log your trips to analyse, improve, rank and much more!

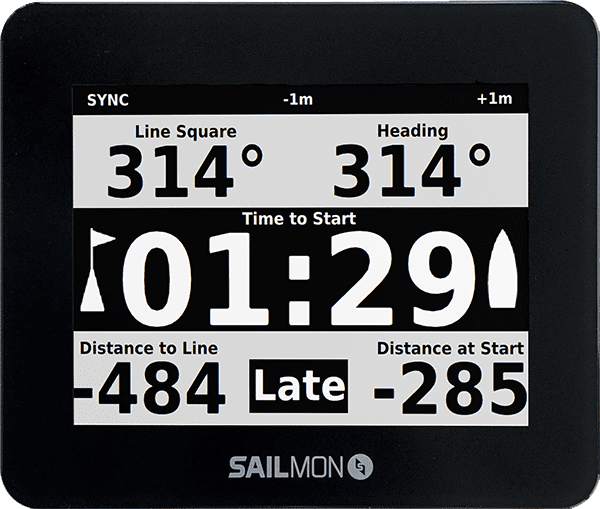

START BETTER
ARE YOU TOO EARLY OR TOO LATE?
Consistently trying to achieve the perfect start? MAX is your best coach. Improve during training and impress your competitors during racing.
1. Ping the boat and ping the pin
2. Synchronise the time
3. Adjust your sailing to the data
4. Are you late or early? Check the indicator!

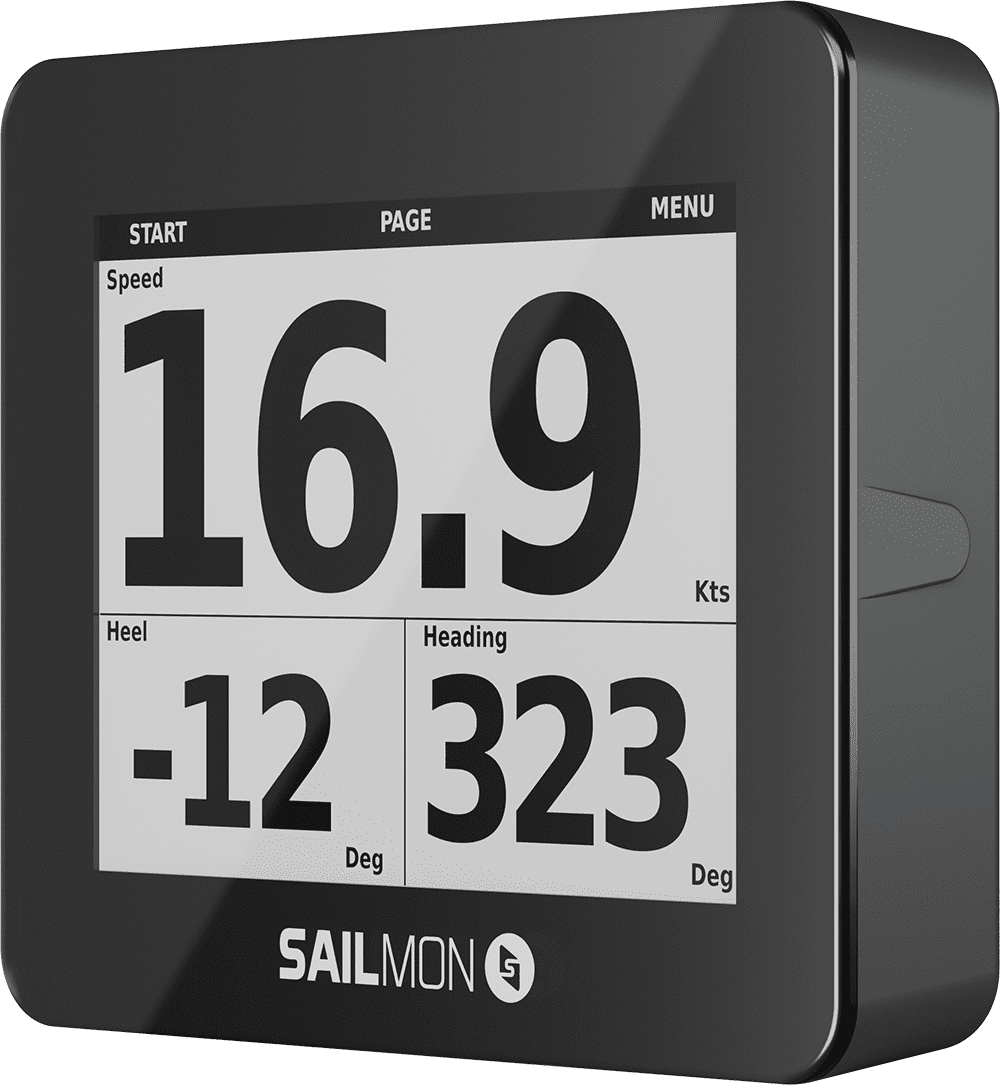

ENRICH YOURSELF WITH DATA
AND KNOW MORE THAN YOUR COMPETITORS
Compass, Course over Ground, Header and Lift, Heel and Pitch, VMG. It’s all included.
Decide which data you want to see with the Page Builder.
Connect a windsensor or loadcell sensor via Bluetooth or WiFi for even more data.
Add depth, wind and speed via the 0183 or 2000 NMEA interface.
Are GPS devices forbidden during racing in your class? Turn off your GPS and still enjoy all the allowed features.
Keep your MAX up-to-date with its latest functionalities via free over-the-air updates.
SAIL FASTER
SHORTEST WAY AT THE HIGHEST SPEED
Speed is key! Keep an eye on the data – based on the best GPS data in the market available – and understand what makes you go faster or slower. Let VMG lead you the shortest way at the highest speed:
1. Determine your best VMG (before the race)
2. Set the course axis in MAX
3. Not in line with your best VMG? Adjust your sailing
USED BY WORLD’S BEST SAILORS
EASY SETUP VIA BLUETOOTH OR WIFI
ADD ONS FOR MORE DATA
WIND
Connect the Calypso Wind Sensor to receive True Wind Angle (TWA), True Wind Direction (TWD), and True Wind Speed (TWS) data.
LOADCELL
Determine and repeat your fastest setting and preserve the integrity of the rigging. Available for all types of boats.
NMEA 0183 or 2000
Add speed, depth and wind to MAX using an NMEA 0183 or 2000 sensor.

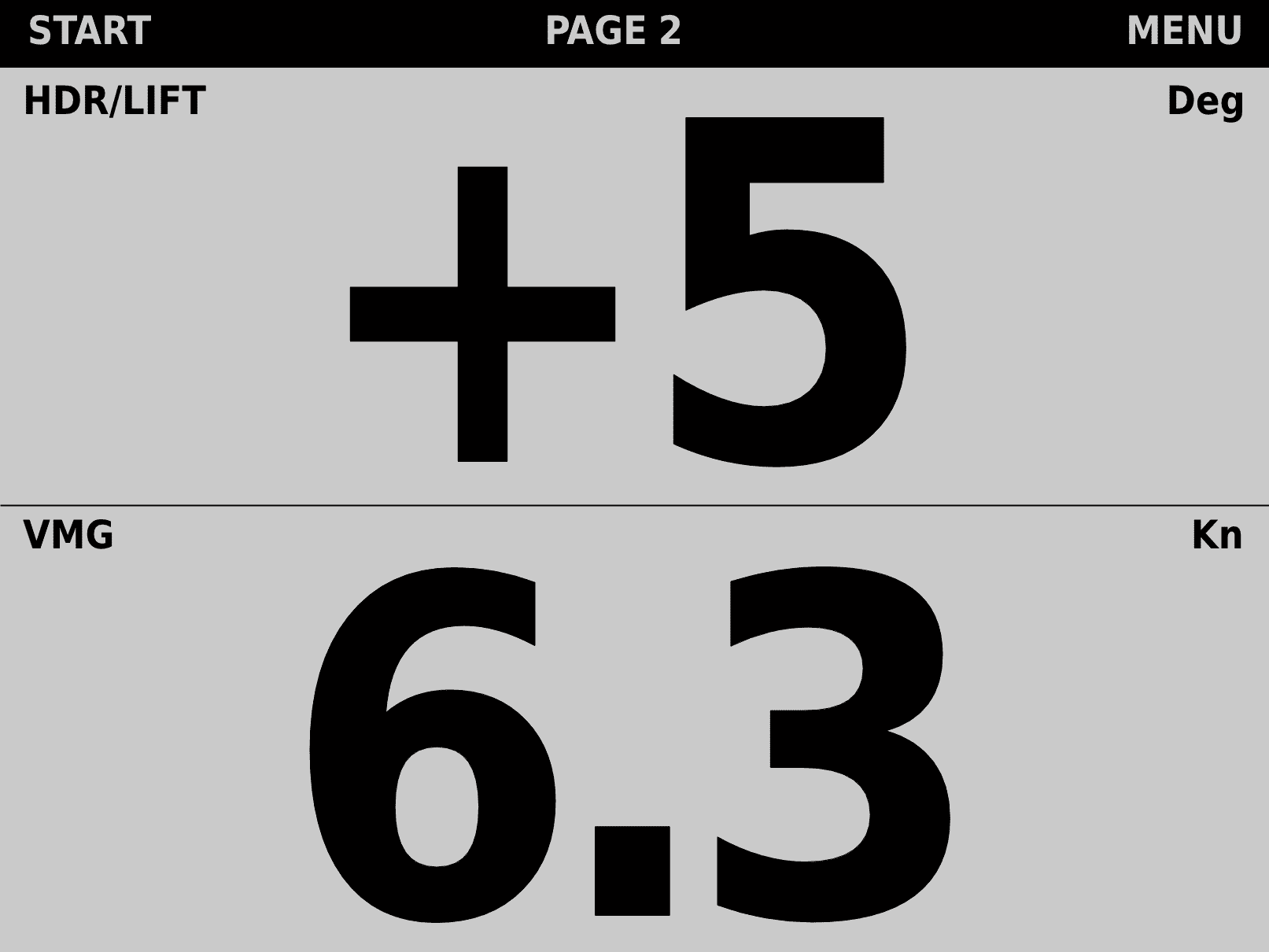

TACK ON HEADERS AND STAY ON LIFTS
SAIL HIGHER
Tack on headers and stay on lifts. Stay ahead of your competitors from start to finish with the self-learning header/lift indicator showing how many degrees you are headed or lifted from the startline wind direction.
1. Set up your up-and downwind target angles
2. Watch the header/lift indicator during racing
3. Is MAX showing a negative number? You’re lifted.
4. Is MAX showing a positive number? You’re headed.
IT’S ALL ABOUT CONNECTIVITY
COMPLETELY WIRELESS
No batteries, charging ports, cables and wires. MAX is completely wireless. Set up a connection with the Sailmon App or sensors via Bluetooth or WiFi and power up your unit via inductive charging.

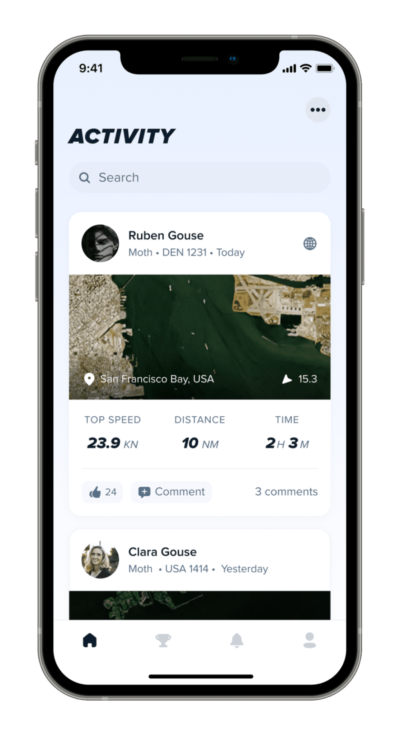

CONNECT TO THE SAILMON APP
We believe that capturing and sharing your performance makes you a better sailor. Nobody gets inspired by untold stories. No one gets challenged by unrecorded performances.
Capture every thrilling moment on the water with a Sailmon instrument to get a simplified debrief at your fingertips with endless possibilities.
Real-time data enables individual sailors, coaches, organizations, and clubs to inspire the sailing community by sharing live performances and stories.
Add exciting media from your phone to your trip and relive every breathtaking moment on the water with just a few taps.
Invite your friends, and enjoy an effortless experience with real-time communication, accurate start times, instant feedback on OCS and more!
The game is ON! Challenge yourself and your competitors on the leaderboards and keep pushing every time you hit the water.
Join our vibrant community and connect with like-minded individuals. Share your stories and engage with friends and competitors from all over the world.

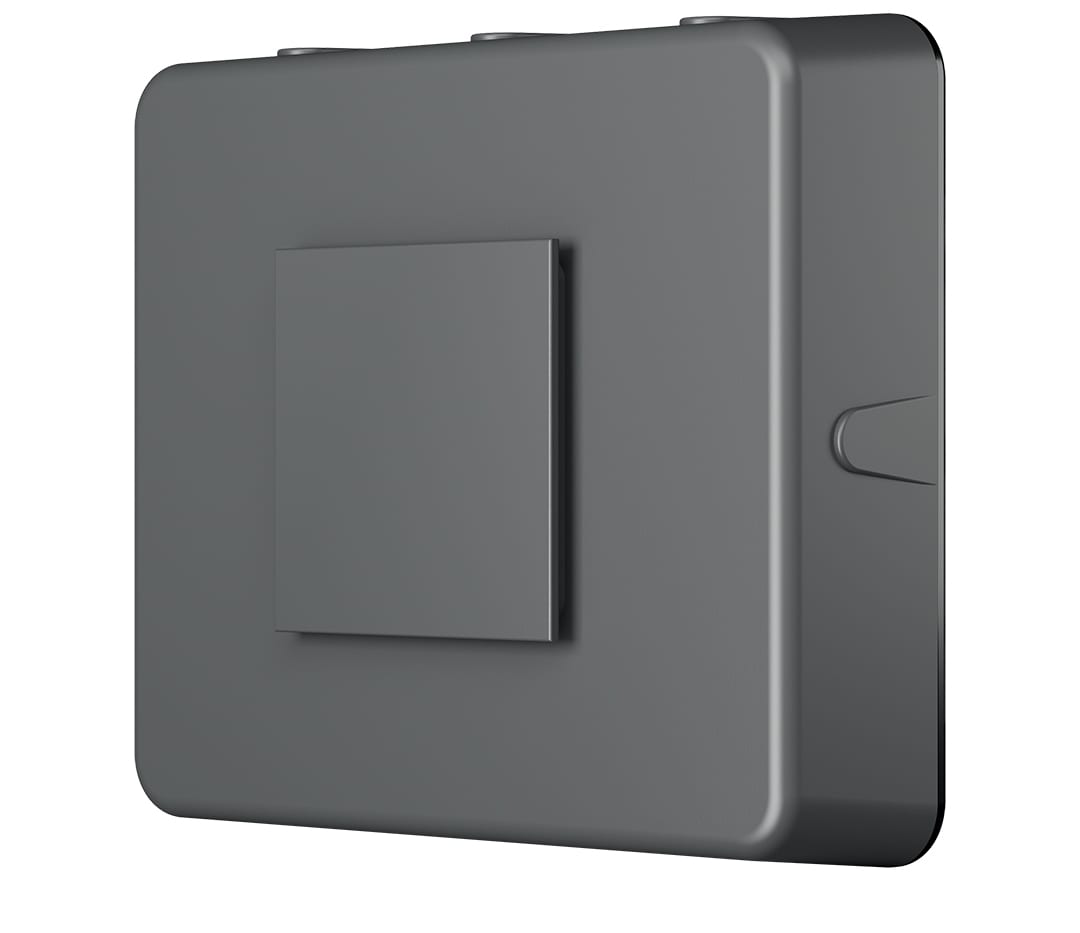

WHICH MOUNT SUITS YOU?
TECH SPECS
Are you ready to improve your sailing? Check the tec specs and order MAX today!
GENERAL
| Dimension | 22mm x 118,5mm x 93mm |
| Display type | 4,4′ transflective LCD |
| Display resolution | 320 x 240 pixels |
| Weight | 275g |
| Water rating | IP67 |
| Battery type | 3600mAh lithium-polymer |
| Battery life | 16 hours (all-day) |
| Charging | Wireless via inductive |
| Buttons | Soft keys |
SENSORS
| GPS | ✔ |
| GLONASS | ✔ |
| Galileo | ✔ |
| BeiDou | ✔ |
| Multi-band GNSS | ✔ |
| 9 DOF IMU (heel & pitch) | ✔ |
CONNECTIVITY
| Bluetooth | ✔ |
| WiFi (2.4GHz) | ✔ |
| Sailmon App | ✔ |
| Windsensor | ✔ |
| Loadcell | ✔ |
| NMEA 0183 | ✔ |
| NMEA 2000 | ✔ |
| Airmar DST810 | ✔ |
| E4 processors | ✔ |
START FUNCTIONALITY
| Time to Start | ✔ |
| (Estimated) Distance to Line | ✔ |
| Distance to Start | ✔ |
| Line Bearing | ✔ |
| Distance to line | ✔ |
| Simple Start Page | ✔ |
| Race Timer | ✔ |
LIVE DATA
| Page Builder | ✔ |
| Boat Speed Water | ✔ |
| Compass | ✔ |
| Course Angle | ✔ |
| Course over Ground | ✔ |
| Depth | Add-on required |
| Header/Lift | ✔ |
| Heel | ✔ |
| Loadcells | Add-on required |
| Pitch | ✔ |
| Speed over Ground | ✔ |
| Time | ✔ |
| True Wind Angle | Add-on required |
| True Wind Direction | Add-on required |
| True Wind Speed | Add-on required |
| Velocity Made Good | ✔ |
| Velocity at Start | ✔ |
DATA AFTER
| MAX speed | ✔ |
| Ten Second Average | ✔ |
| Top 10 Second Average | ✔ |
APP FEATURES
| Automatically logging trips | ✔ |
| Timeline | ✔ |
| Share, like and comment | ✔ |
| Session reports | ✔ |
| Session higlights | ✔ |
| Session statistics | ✔ |
| View by leg | ✔ |
| Leaderboards (filter by class/period) | ✔ |
| Daily results ranking | ✔ |
| Add photo/video with data stamp | ✔ |
| Download trip (GPX, CSV or Events) | Â GOLD subscription |
| Notice board | ✔ |
| Compare (live) with others | GOLD subscription |
| Up- and downwind performance | GOLD subscription |
| Personal inferred wind directions | GOLD subscription |
| Shift tracking | GOLD subscription |
| Automatic comparison to best polars in class | GOLD subscription |
