Coach Pole
Sport Boat Package

Sailmon Coach Pole
All data straight to the cloud Plug and Play

Highly accurate sensor

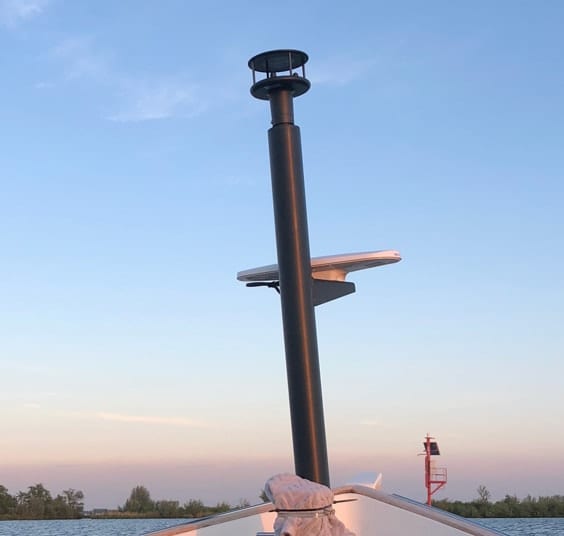

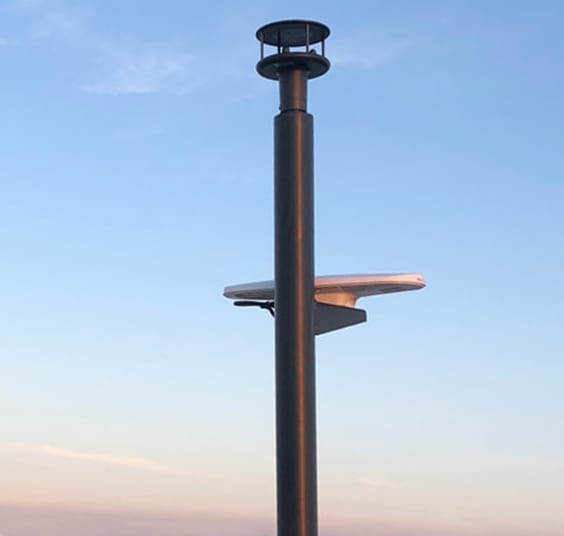

The Sailmon Coach Pole is a highly accurate GPS heading sensor, equipped with a sonic wind sensor to monitor and log calibrated wind speed and direction directly to the Sailmon E4 Silver. You can connect your E4 to Sailmon Logs to share, replay and analyze the data directly from your Sailmon Logs account.

Waterproof connection

The Sailmon Coach Pole connects directly to a waterproof and impact resistant case containing a built-in Sailmon E4 Silver Processor, battery pack capable of running the system for up to 72 hours and a Wifi enabled the 3G modem to connect wifi devices for direct control/calibration and data display. 3G connectivity allows the E4 to send your logged data directly to your online Logs account.

Crystal clear rugged display

Our 6” Element Ink displays run for hours and hours. Delivering unrivaled crisp data. Just like our signature Element range, the display can be fully configured using our NavDesk app. The Instant graphs make sure you never miss a shift and can easily identify a persistent or oscillating wind shift.

Self-contained designed

The E4 silver enclosure is designed to be a self-contained unit containing its own regulated power supply, the enclosure can be disconnected from the sensor pole and removed at the end of each session if desired. A 3G sim card will be required to connect the E4 silver directly to your Sailmon LOGS account for live data updates. Connect your Sailmon App to your LOGS account to receive live wind data direct from your coach pole system.

Highly accurate sensor

The Sailmon Coach Pole is a highly accurate GPS heading sensor, equipped with a sonic wind sensor to monitor and log calibrated wind speed and direction directly to the Sailmon E4 Silver. You can connect your E4 to Sailmon Logs to share, replay and analyze the data directly from your Sailmon Logs account.

Waterproof connection

The Sailmon Coach Pole connects directly to a waterproof and impact resistant case containing a built-in Sailmon E4 Silver Processor, battery pack capable of running the system for up to 72 hours and a Wifi enabled the 3G modem to connect wifi devices for direct control/calibration and data display. 3G connectivity allows the E4 to send your logged data directly to your online Logs account.

Crystal clear rugged display

Our 6” Element Ink displays run for hours and hours. Delivering unrivaled crisp data. Just like our signature Element range, the display can be fully configured using our NavDesk app. The Instant graphs make sure you never miss a shift and can easily identify a persistent or oscillating wind shift.

Self-contained designed

The E4 silver enclosure is designed to be a self-contained unit containing its own regulated power supply, the enclosure can be disconnected from the sensor pole and removed at the end of each session if desired. A 3G sim card will be required to connect the E4 silver directly to your Sailmon LOGS account for live data updates. Connect your Sailmon App to your LOGS account to receive live wind data direct from your coach pole system.

Sailmon App

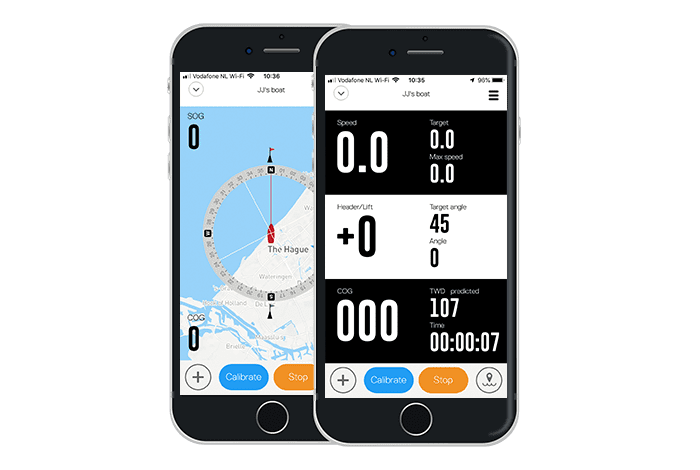

Sailmon turns every iPhone and Android device into an advanced sailing processor. Making all action on the water instantly available online. Any moment captured on the boat, being instantly uploaded and enhanced with live data from the coach pole, weather station or grab source.

Sailmon App

Sailmon turns every iPhone and Android device into an advanced sailing processor. Making all action on the water instantly available online. Any moment captured on the boat, being instantly uploaded and enhanced with live data from the coach pole, weather station or grab the source.

Sailmon App

Sailmon turns every iPhone and Android device into an advanced sailing processor. Making all action on the water instantly available online. Any moment captured on the boat, being instantly uploaded and enhanced with live data from the coach pole, weather station or grab the source.

Technical specifications

GPS Sensor Specifications
Receiver Type: L1, C/A code, with carrier phase smoothin

Channels Two:
– 12-channel, parallel tracking
– (Two 10-channel when tracking SBAS)
SBAS Tracking: 2-channel, parallel tracking

Update Rate:
– 10 Hz standard
– 20 Hz optional (position and heading

Horizontal Accuracy:
– < 1.0 m 95% confidence (DGPS1)
– < 2.5 m 95% confidence (autonomous, no SA2)

Heading Accuracy: < 0.75 ̊ rms
Pitch/Roll Accuracy: < 1.5 ̊ rms
Heave Accuracy: 30 cm 5
Rate of Turn: 90 ̊/s maximum
Compass Safe Distance: 30 cm 4
Cold Start: < 60 s (no almanac or RTC)
Warm Start: < 20 s typical (almanac and RTC)
Hot Start: < 1 s typical (almanac, RTC and position
Heading Fix: < 10 s typical (valid position)
Maximum Speed: 1,850 kph (999 kts)
Maximum Altitude: 18,288 m (60,0000 ft)

Physical
Dimensions: 417 L x 158 W x 69 H mm
Weight: 1.5 kg
Power/Data Connector: 12-pin, Female, IP67

Environmental
Operating Temperature: -30°C to + 70°C
Storage Temperature: -40°C to + 85°C
Humidity: 100% non-condensing
Vibration: IEC 60945

Sonic Wind Sensor Specification

Wind Speed
Range: 0 – 60 m/s (116 knots
Accuracy: ±2% @ 12 m/s
Resolution: 0.01 m/s (0.02 knots)
Response Time: 0.25 seconds
Threshold: 0.01 m/s

Direction
Range: 0 = 360° (No dead band)
Accuracy: ±2° @ 12 m/s
Resolution: 1°
Response Time: 0.25 seconds

Measurement
Ultrasonic Output Rate: 0.25, 0.5, 1, 2 or 4 Hz
Parameters: Wind Speed & Direction or U and V (vectors)
Units of Measure: m/s, knots, mph, kph, ft/min

Environmental
Protection: Class IP66
Operating Temperature: -35°C to +70°C
Storage Temperature: -40°C to +80°C
Operating Humidity: <5% to 100% RH
Precipitation: 300mm/hr
EMC: EN 61326: 1998

Order Information
SAILMON Partnumber: RSM-COACH RRP exc. VAT: 9,950.00 €

Get the CoachPole

In sailing every inch counts, with the Sailmon Coach Pole, accuracy, precision, and analysis ensure you get the best information possible to help improve your sailing performance, giving you the edge over the competition.
